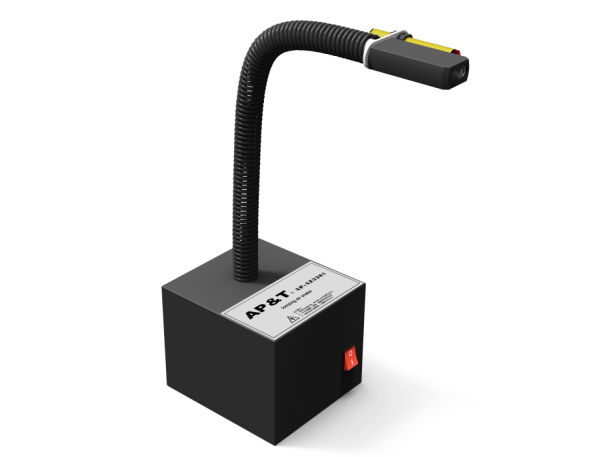

SP-AZ3201 Inductive Ionizing Air Snake

◆ Features

1、Small size, convenient installation, flexible operation and reliable performance

2、Static eliminating while cleaning the surface dust

3、Controlled by far automatic and inductive IR circuit without hand operation

4、Integration of the inductive control section and power supply

◆ Industry Applications

Used in electronics, optoelectronics, semiconductors, plastics, films and printing industries

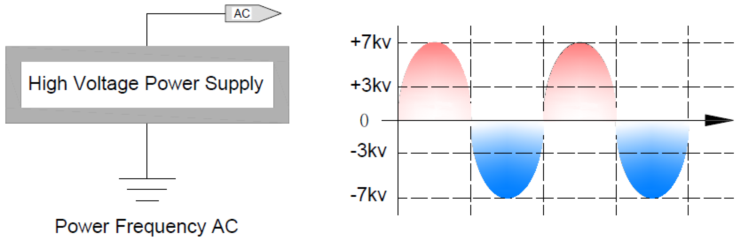

◆ Working Ways （AC）

◆ Specification

Model             SP-AP-AZ3201

Input Voltage        AC220V 50Hz or AC110V 60Hz

Power             26W

Working distance     150－300mm

Ion balance             ≤|±50V|（150mm testing center from the air snake）

Discharge speed        ≤1.5S（150mm testing center from the air snake）

Noise             <65db（150mm from the air outlet）

Medium used           clean pressed air

Air pressure rang        0.2 - 0.6MPa

Working temperature     0°C - 50°C

Air connector           ф8mm（customize available）

Dimension            180*135*118mm（L*W*H）（cabinet）

Net weight            3350g（including power cord, optoelectronic switch and clamp ring）

Gross weight           3780g

◆ Elimination Effect

Testing instrument：3M-711  Static tester

Testing standard：ESD.STM3.1-2000，SJ/T 11446—2013

Testing voltage：±1000V-±100V Attenuation

Testing environment：Humidity：50±5%；Temperature：23±3℃；

Testing Air pressure：0.5MPa

◆ Dimension
