Product title:Megohm meter ACL-800 original

  • Product detail:The ACL--800 type Mega ohm meter is designed according to EOS/ESD, CECC, ASTM and UL testing procedures, which is used to measure the impedance or resistance of all conductive, antistatic and electrostatic discharge type surface. Easy to use, high quality and high reliability, the instrument can also measure the relative humidity and temperature that affect the electrical performance.

    Megohm meter ACL-800 original From USA






    ACL-800 detailed description of the use of the specification

    AACL-800 instruction manual

    Measuring temperature and humidity. "Humidity and temperature can affect impedance, so it must be measured"

    The measurement of surface impedance of 103-1012 ohms per square 103-1012 ohmic resistance measurement

    Relative humidity: 10%-90%RH

    Temperature: 32. F-100. F (0 degrees C -37.8 C)

    High precision - the full range

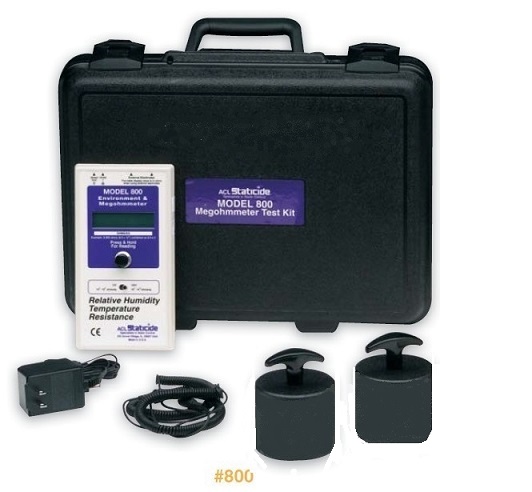

    Include electrode:

    --2 a 5 pound weight, 2.5 inch RTT, RTG disk shaped electrode

    --2 3 inch parallel surface impedance test electrode

    LCD digital display

    Rechargeable battery

    - measurement table mat, floor coating, paint, wristbands, uniforms, shoes (shoes), bags and containers

    The ACL--800 type Mega ohm meter is designed according to EOS/ESD, CECC, ASTM and UL testing procedures, which is used to measure the impedance or resistance of all conductive, antistatic and electrostatic discharge type surface. Easy to use, high quality and high reliability, the instrument can also measure the relative humidity and temperature that affect the electrical performance.

    Characteristic:

    Measurements of impedance, temperature and humidity, in accordance with the ESD standard, S4.1, S7.1 and S11.11

    103-1012 ohms per square range, can be electrical testing of various materials.

    10 V /100 volts measurement scales, suitable for standard working table and ground.

    Plastic instrument protection box to prevent damage to the instrument

    Light weight, only 150Z (425g), easy to carry

    LCD digital display, easy to use, easy to read

    Automatic power off function to extend battery life

    Automatic return to zero, to ensure the accuracy of

    Parallel electrodes, 5 lb probe and built-in impedance probe, are in line with ASTM, EOS and CECC standards

    One year warranty period

    China manufacturing, confidence, quality, service assurance

    NIST tracking, ISO9000 guarantee

    Can replace the probe, to extend the service life

    9V DC or nickel cadmium rechargeable battery or AC transformer, are common in China and overseas.

    Type ACL--800 Mega ohm meter

    The best impedance meter in the world, set impedance, humidity, temperature three kinds of measuring instruments in one
