Product title:Small SMT ESD PCB Magazine Rack 355*315*315mm SP-02

  • Product detail:1) 25 slot small magazine racks, 2) size: 355*315*315mm , 3) Top &bottom :plastic SOUP ESD PCB Magazine Racks are available with various types and sizes to meet customer's needs and all models are compatible with standard SMT equipment.

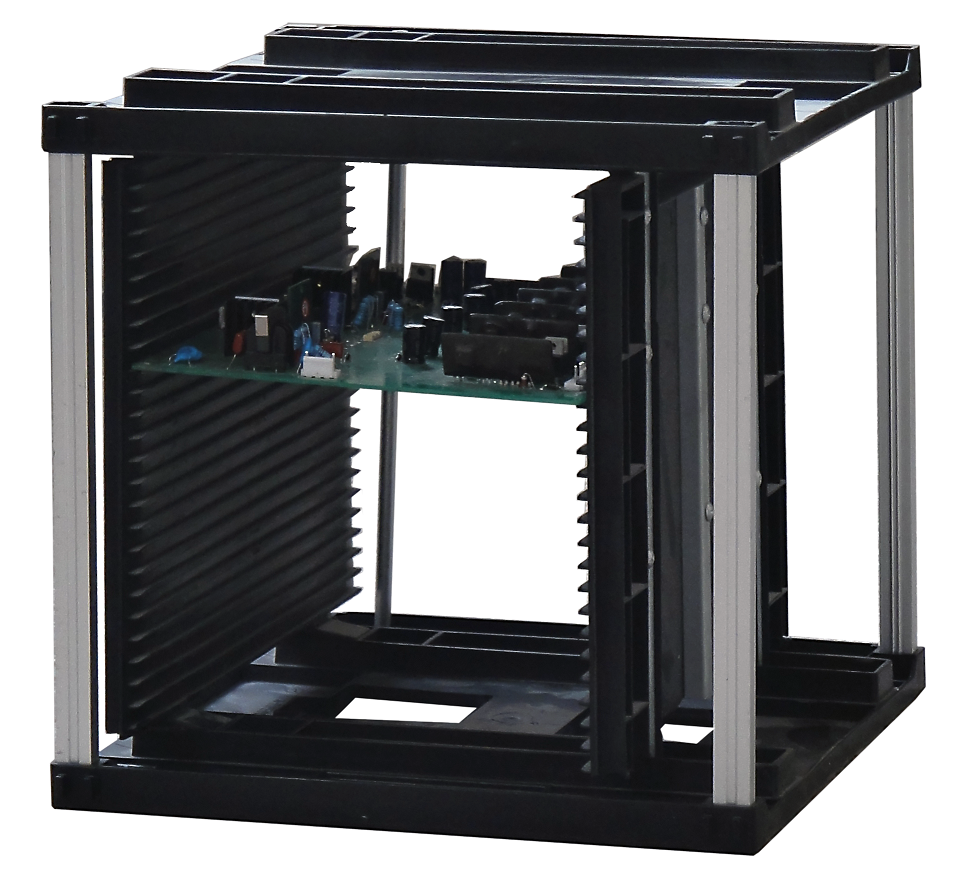

    Small SMT ESD PCB Magazine Rack 355*315*315mm SP-02

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines

    The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .



    For Automated Assembly Lines

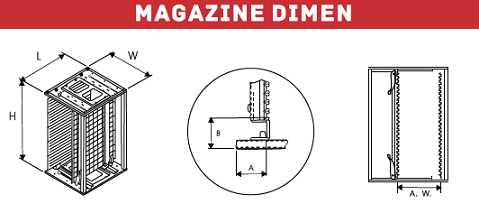

    Magazine rack demension.png

    Specification:

    Material: Conductive PP /PPE, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:

    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    355×315×3153.5mm7mm10mm(80-250)mm25
    Adjustment MethodSide PlateBase MaterialtWeight
    Screw AdjustableWhole PlatePlastic3.4kg
    SP-02 Temperature: 80 degree.C , which is only fittable to PC board temperature.
    Surface Resistance
    Dissipative Type 1.0×10E4Ω~1.0×10E9Ω
