Product title:Kapton Tape SP-TAP-04

  • Product detail:

    Kapton Tape,  SP-TAP-04

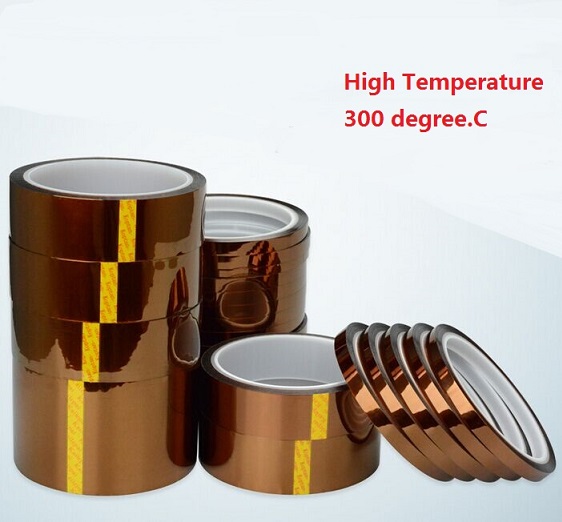

    KAPTON TAPE.jpg




    Description:

    1) polyimide tape, with polyimide film as the basic carrier, and coated with imported pressure sensitive silicone adhesive.

    2) It can endure high temperature up to 260 °C-300 °C within half an hour,

    3)electrical insulation, radiation resistance, solvement resistance ,etc.



    Application:

    Its mostly applied for the motor insulation, gold finger protection of PCB during wave soldering etc.

    Without any residue after the tape is removed from the gold finger.



    Items

    Datas

    Backing

    Polyimide film

    Adhesion

    Silicone

    Color

    Amber

    Thickness (mm)

    0.06

    Length (m)

    33M

    Tensile Strength (N/25mm)

    ≥140

    Elongation (%)

    ≥40

    Breakdown strength (N/25mm)

    ≥150

    Voltage resistance (KV)

    6

    Adhesion (N/25mm)

    6
