Product title:Full metal Aluminum SMT Antistatic ESD PCB Magazine Rack SP-15 355*320*563mm

  • Product detail:Aluminium material sideboard ,full metal magazine rack, which can be putted into oven and bear more than 200degree.C temperature .

    Full metal Aluminum SMT Antistatic ESD PCB Magazine Rack SP-15 355*320*563mm


    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP SMT

    ESD Magazine rack in your production .



    For automated assembly lines

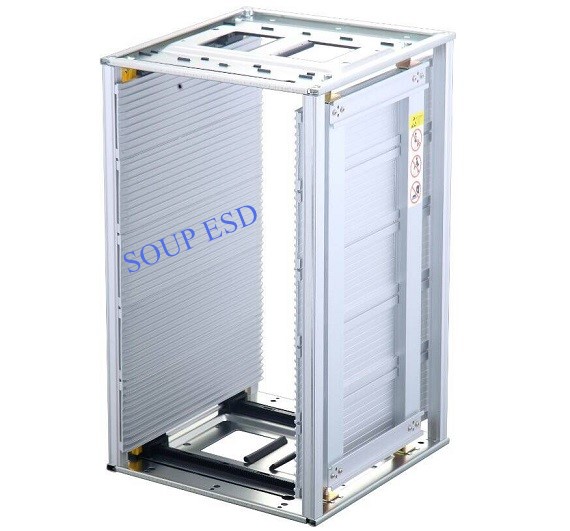

    Full metal aluminum magazine rack.jpg

    Magazine rack demension.png


    Specification:

    Material: Aluminiumn , Zinc Coating Steel, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:

    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    355×320×5633.5mm7mm10mm(50-250)mm50
    Adjustment MethodSide PlateBase MaterialtWeight
    screw Adjustable

    Aluminum Five Pieces Assembled

    Metal 8.5 kg
    SP-15 Temperature:  300 degree.C


    Dissipative Type 1.0×104Ω~1.0×109Ω
