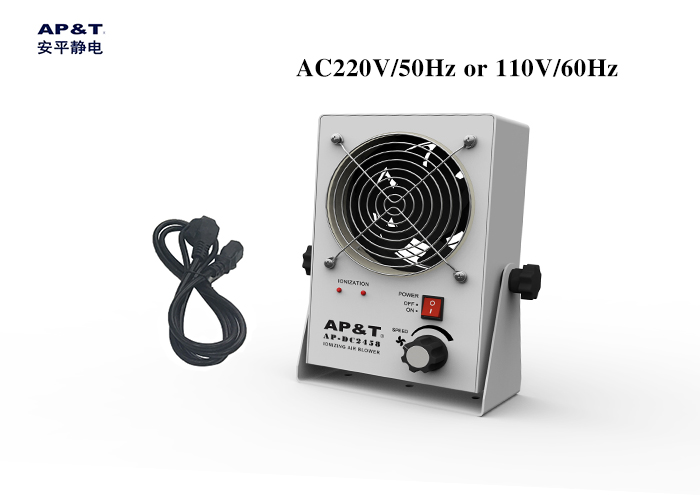

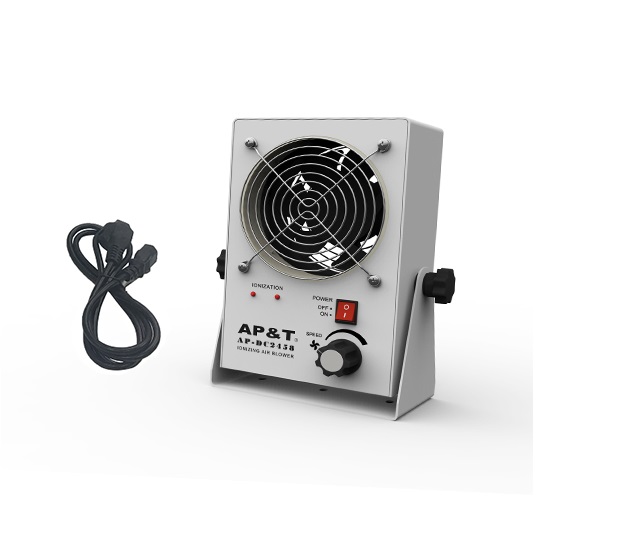

AC 220v Anti Static AP-DC2458 Industrial Mini Air Blower Fan With Ionizer
Product Description
AP-DC2458 ionizing air blower is a member of the ionizing blower product series manufactured by Shanghai Anping Static Science&Technology Co.,Ltd, which is a reliable and high efficient device in providing static removing for the objective surface.
AP-DC2458 applies the latest technology of ionization model in the world. It generate both polarity ion and arrive the object surface where the static to be eliminated most equally. Eliminate static effectively and control the remaining static well.
AP-DC2458 is widely used in electronics,plastic,chemical,printing and optics industry etc.
1. General
AP-DC2458 ionizing air blower is a member of the ionizing blower product series manufactured , which is a reliable and high efficient device in providing static removing for the objective surface.
AP-DC2458 applies the latest technology of ionization model in the world. It generate both polarity ion and arrive the object surface where the static to be eliminated most equally. Eliminate static effectively and control the remaining static well.
AP-DC2458 is widely used in electronics,plastic,chemical,printing and optics industry etc.
2. Features
(1)Applies commutating, filtrating circuit with low voltage and high reliability.
(2)Big volume of ion generating and fast speed of static removing.
(3)DC working voltage with low power consumption and long product life.
(4)Front and back cover net dismantleable and easy for maintenance.
(5)Internal installed power generator.
Industry Applications
Wildly used in electronics, optoelectronics, semiconductors, plastics, films and printing industries
Industry Application
Specificion:
Model | AP-DC2458 |
Input voltage | AC220V/50Hz or 110V/60Hz |
Working voltage | ±DC4000-DC7000V |
Power | 12W |
Ion balance | -10V~+10V(300mm testing center from the air outlet) |
Discharge speed | ≤1.5s (300mm testing from thr air outlet) |
Effective working range | 1200*600mm(L*W) |
Air volume | 0-95CFM(adjustable) |
Noise | ≤45df(150mm from the air outlet) |
Ozone thickness | ≤0.02ppm(150mm from the air outlet) |
Working temperature | 0-50℃ |
Dimension | 180*102*230mm(L*M*H) |
Net weight | 1960G |
Ion emission | Steady state DC |
Transmitting electrode | Tungsten alloy |
Discharge structure | Uncoupled electrical contact (discharge cylinder) |
Alarm indication | The power indicator is on and working normally. |
shell material | Aluminum dusting |
Mounting accessories | 1 pair of U-shaped aluminum powder spray mounting bracket, 1 pair of bakelite screw handles (M6×12) |
Gross weight | 2620g |
Quality assurance | 1 Year |
Certificate | CE |
