Large SMT ESD PCB MAGAZINE RACK 460*400*563mm SP-09/SP-09G

Position：A Safe electronic world » ESD Magazine Rack » SOUP PCB Magazines » Large SMT ESD PCB Magazine Rack 460*400*563mm SP-09/SP-09G

Product title：**Large SMT ESD PCB Magazine Rack 460400563mm SP-09/SP-09G**

Product detail：Product detail：1) M size: 460*400*563mm , 2)top & bottom : Metal 3)Temperature: 80 or 120degree.C 4) PCB adjust: 460*(70-330)mm SOUP ESD PCB Magazine Racks are available with various types and sizes to meet customer's needs and all models are compatible with standard SMT equipment.

Large SMT ESD PCB Magazine Rack 460*400*563mm SP-09/SP-09G

Code: SP-09 /SP-09G

Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .

For automated assembly lines

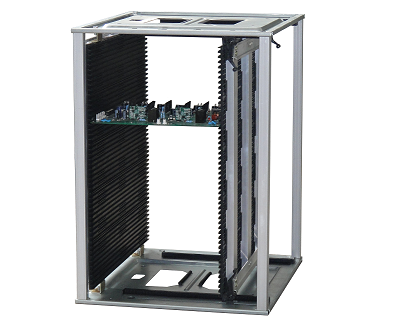

anti-static PCB magazine rack sp-09,09G.png

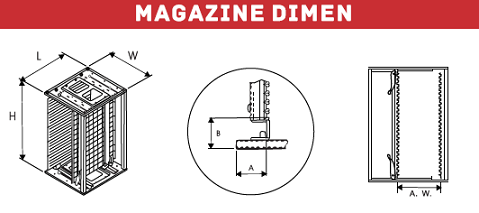

Magazine rack demension.png

Specification:

Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy

Application:

-Store and logistic PCB, Electronic components

-ESD Protection on SMT, SMD , Semiconductor industrial

-Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .

Detail:

Contour Size(L×W×H)mm	Slot of side plate			PCB board use standard
	Depth	Width	Pitch	Adustable Width	PCB Stored
460×400×563	3mm	5mm	10mm	(70-330)mm	50 pcs
Adjustment Method	Side Plate			Base Materialt	Weight
Handle Adjustable	Five Pieces Assembled			Metal	8.8kg
SP-09 Tempertuare: 80℃ , which is only fittable to pc board temperature. SP-09G Tempertuare: 120℃ , which is only fittable to pc board temperature.
Surface Resistance
Dissipative Type 1.0×10⁴Ω～1.0×10⁸Ω
