Product title:Europe ESD Magazine Rack 400*320*573mm SP-16

  • Product detail:1) M size: 400*320*573mm , 2)top & bottom :plastic 3)Temperature: 80degree.C 4) PCB adjust: 350*(50-250)mm SOUP ESD PCB Magazine Racks are available with various types and sizes to meet customer's needs and all models are compatible with standard SMT equipment.

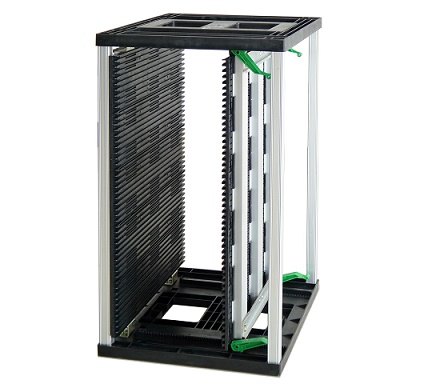

    ESD PCB Magazine Rack

    Code: SP-16

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .



    For automated assembly lines

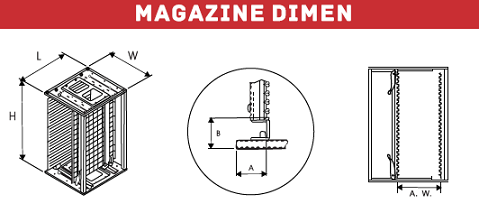

    Magazine rack demension.png


    Specification:

    Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:

    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    400×320×5733mm5mm10mm(50-250)mm50
    Adjustment MethodSide PlateBase MaterialtWeight
    Handle Adjustable

    Five Pieces Assembled

    Plastic5.5kg
    SP-16 Temperature: 80 degree.C
    Surface Resistance

    Dissipative Type 1.0×104Ω~1.0×109Ω
