Product title:Vacuum Pick up Tool SP-381A

  • Product detail:. ESD safe design, no damage to sensitive components.

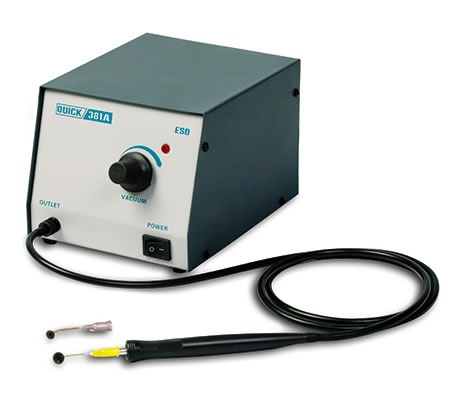

    Vacuum Pick up Tool SP-381A



    Features
    1. ESD safe design, no damage to sensitive components.
    2. Scientific design of suction pen, light structure.
    3. Vacuum suction stepless adjustable, single suction pen, powerful suction force can reach to 120g.
    4. QUICK381A can control the pick-up and placing of chips accurately and effectively, avoid shaking when placing.
    5. Pedal switch control, energy saving, long lifetime.
    6. Suction nozzles and pads can be used together and interchangeable.

    Specifications

    Power7W
    PumpDiaphragm
    Max suction0.03M Pa
    Suction padConducting silicon rubber
    Dimensions130(L)*160(W)*110(H)mm
    WeightAbout 1.55kg

    Accessories

    Straight suction nozzle0.7mm, 1.45mm(Inner diameter)
    Bend suction nozzle0.7mm, 1.45mm(Inner diameter)
    Suction pad6mm, 7mm, 8mm, 10mm(diameter)
